Another Carburetor Project. 4 months 3 weeks ago #30446

  • KZQ
  • KZQ's Avatar Topic Author
  • Offline
  • Administrator
  • Administrator
  • Lifelong Rider Suffering Through MBD
  • Posts: 1003
  • Thank you received: 250
Now I see why the previous builder may have failed to set the fuel levels correctly. The float bowls have drain screws with a M6x.5 (possible .75 thread pitch). I need to drill through three similar brass screws so that I can solder on small brass tubes and perform a wet method level check. I'm told that the previous builder already installed three of Scotch's brass carb floats. Does any body have any idea where I can purchase some of these fine threaded metric screws?
TIA
Bill
1947 Indian Chief, 1968 BSA Shooting Star, 1970 BSA 650 Lightning, 1974 Kawasaki W3, 1976 KZ900 A4, 1979 KZ750 B4, 1979 KZ750 B4 Trike, 1980 KZ550, 1981 KZ1300, 1982 KZ1100 Spectre, 1985 Kawasaki ZN1300, 1987 Yamaha Trail Way, 2000 Honda Valkyrie Tourer, 1981 GL 1100, 2009 Yamaha RoadLiner S

Please Log in or Create an account to join the conversation.

Another Carburetor Project. 4 months 3 weeks ago #30447

  • Kawboy
  • Kawboy's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 2633
  • Thank you received: 850
Don't know if these Du-Bro cat #241 will fit or not since the drain holes have already been tapped. I got these hose barbs from my local RC hobby shop and I tapped the drain holes to fit. These are a #6-32. Also picked up 1 ft of the clear silicone fuel line to fit the barbs to use as measuring tubes for fuel float height adjusting.

 I see you can also get M6mm x 1mm hose barbs and as an example   EBAY 6MM hose barb




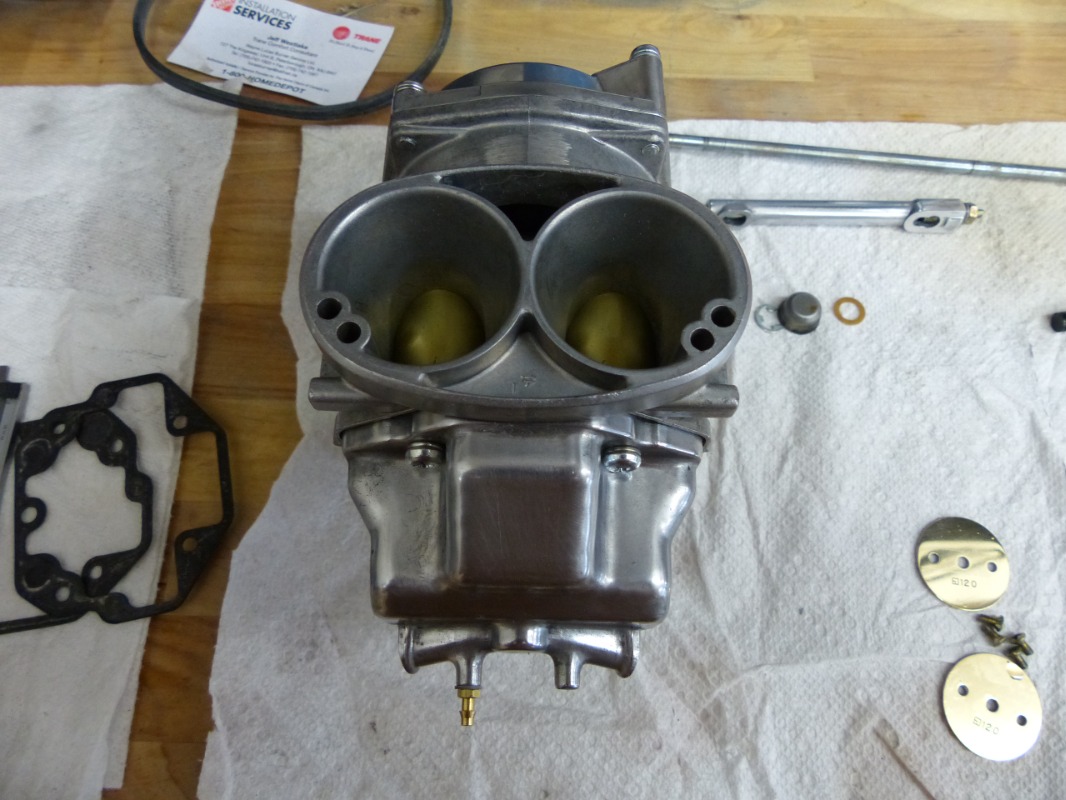

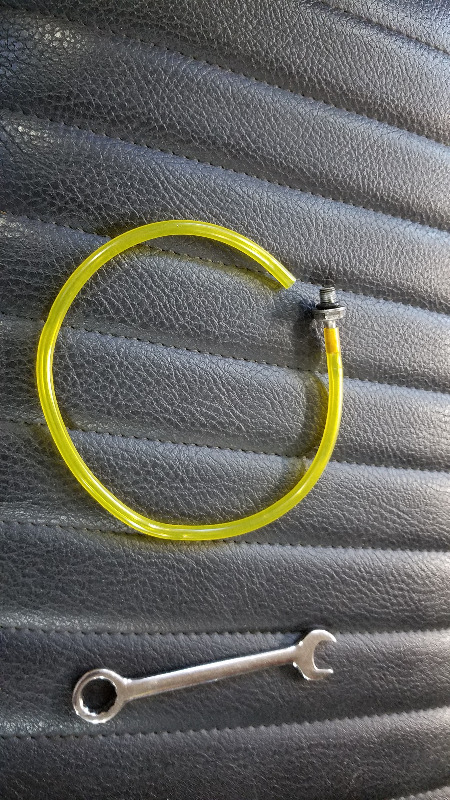

Attachments:
The following user(s) said Thank You: KZQ, biltonjim

Please Log in or Create an account to join the conversation.

Last edit: by Kawboy.

Another Carburetor Project. 4 months 3 weeks ago #30448

  • biltonjim
  • biltonjim's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 830
  • Thank you received: 206
That 'Motorcycle Project' site has so much good reading. Thanks for mentioning it, Kawboy.

Please Log in or Create an account to join the conversation.

Another Carburetor Project. 4 months 3 weeks ago #30449

  • tackelhappy
  • tackelhappy's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 387
  • Thank you received: 158
Carb parts.
At the usual vendors.
Zed-Parts in Britain.
The German Shop.
Both type of carb drain screws . 92066-1064
                                                                1045
" If you can't say what you think, very soon you won't be able to think !
OKANAGAN FALLS. BC ,Canada
The following user(s) said Thank You: KZQ

Please Log in or Create an account to join the conversation.

Another Carburetor Project. 4 months 3 weeks ago #30450

  • KZQ
  • KZQ's Avatar Topic Author
  • Offline
  • Administrator
  • Administrator
  • Lifelong Rider Suffering Through MBD
  • Posts: 1003
  • Thank you received: 250
Thanks for those links Guys. I'll order some drain screws from Kawasaki. In the mean time, I drilled out a drain screw from one of my spare carb sets and soldered a piece of 1/8" copper tube into it thus:

At this point I only have one so I checked the fuel levels three times and surprisingly, at least to me, the 1-2 carb wasn't the highest.
The 1-2 & 5-6 carbs were holding at 1/8" below the top of the fuel bowl and the 3-4 carb was reading right at the top. All three are too high.

The spec is 5mm (a shy 1/4") to 8mm (a proud 5/16") below the top of the fuel bowl. I did this with the bike of the center stand, carbs still mounted.

So still no answer why the #1 cylinder runs so rich on so many 1300s.
Could it be that fuel siphons from the center and right side carbs when the bike is on the side stand? This might cause the 1-2 carb to be flooded.
No, that's not likely it'd have to flow back up through the float valves.
Working on it.
Bill
1947 Indian Chief, 1968 BSA Shooting Star, 1970 BSA 650 Lightning, 1974 Kawasaki W3, 1976 KZ900 A4, 1979 KZ750 B4, 1979 KZ750 B4 Trike, 1980 KZ550, 1981 KZ1300, 1982 KZ1100 Spectre, 1985 Kawasaki ZN1300, 1987 Yamaha Trail Way, 2000 Honda Valkyrie Tourer, 1981 GL 1100, 2009 Yamaha RoadLiner S
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by KZQ.

Another Carburetor Project. 4 months 2 weeks ago #30457

  • KZQ
  • KZQ's Avatar Topic Author
  • Offline
  • Administrator
  • Administrator
  • Lifelong Rider Suffering Through MBD
  • Posts: 1003
  • Thank you received: 250

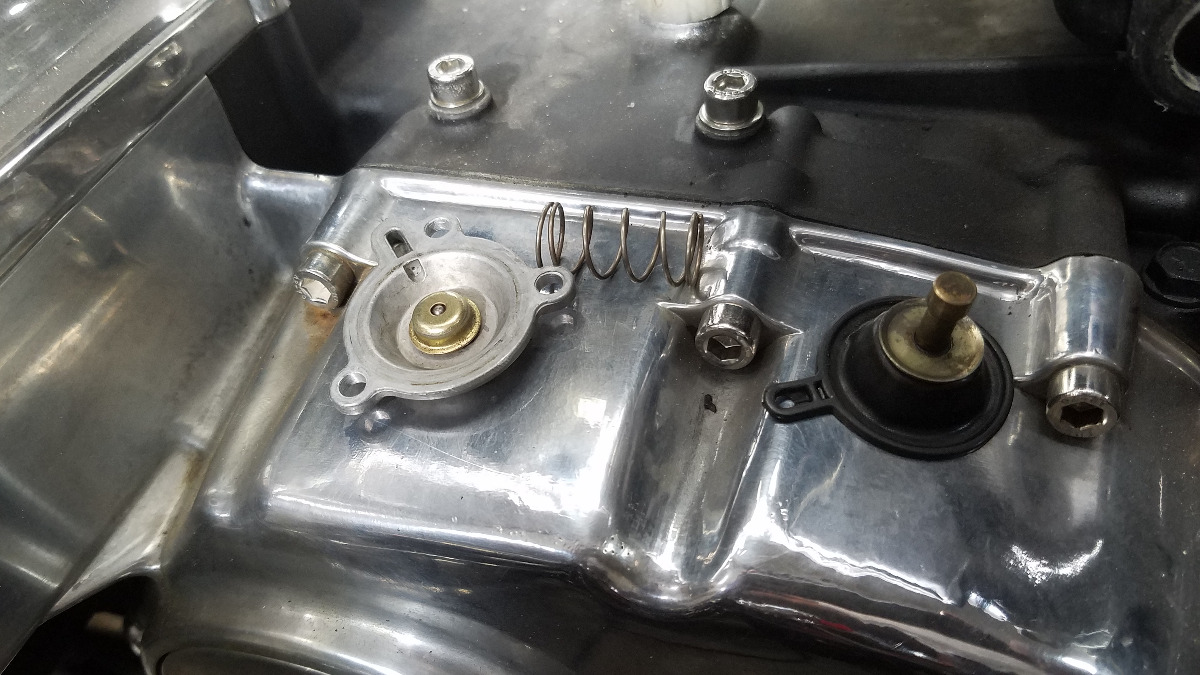

I haven't yet pulled the carbs but I did remove the cover from the deceleration enrichment diaphragm on the 1-2 carb. I've always been concerned that this enrichment system contributes too much fuel. Here's a pic of the various parts after I removed them:
