If you make pieces and parts or provide services for Kawasaki Sixes you may post links here to your business or product catalog. If you're just into 1300's and have found a business that you like to deal with post it up here.

TOPIC:

Valve adjustment 5 months 1 week ago #29340

  • Kawboy
  • Kawboy's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 2531
  • Thank you received: 778

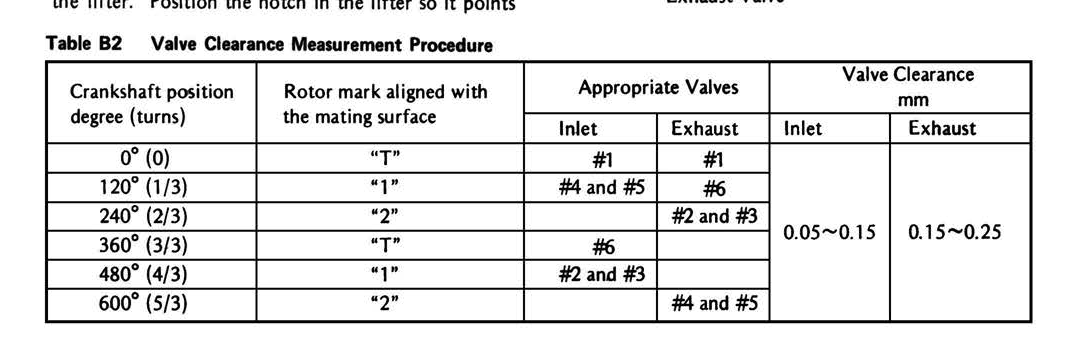

The Service Manual is worth downloading from the Home Page when you are logged in as a member. Page 13 of the manual has this chart showing what crank position you need to turn the crank to and what valves can be checked adjusted at each of those positions.


Attachments:

Please Log in or Create an account to join the conversation.

Valve adjustment 5 months 6 days ago #29341

  • Bucko
  • Bucko's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 608
  • Thank you received: 146

When adjusting valves at the different crank positions do you do all the exhaust at one time and move crank and do all intake?




I do all the intakes and exhausts, one cylinder at a time,starting with #6.  This method makes it easier to keep track of which cylinder I'm working on.  I use a set of feeler gauges specifically for the inlets and a separate set specifically for the exhausts.

Hello from Canada's We(s)t coast.

Please Log in or Create an account to join the conversation.

Last edit: by Bucko.

Valve adjustment 2 weeks 6 days ago #29963

  • Gavin
  • Gavin's Avatar
  • Offline
  • Senior Member
  • Senior Member
  • Posts: 79
  • Thank you received: 15
Hi guys
i am about to do a valve clearance check and the chart shown above from the manual refers to the marking on the rotor I.e T, a 1 and 2 my rotor does not have any markings on, I have been told that I could check the clearances by positioning the lobe pointing away from the shim and doing the measurements , has anyone used this method and  will this work?

cheers
Gavin

Please Log in or Create an account to join the conversation.

Valve adjustment 2 weeks 6 days ago #29964

  • Kawboy
  • Kawboy's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 2531
  • Thank you received: 778

Hi guys
i am about to do a valve clearance check and the chart shown above from the manual refers to the marking on the rotor I.e T, a 1 and 2 my rotor does not have any markings on, I have been told that I could check the clearances by positioning the lobe pointing away from the shim and doing the measurements , has anyone used this method and  will this work?

cheers

Gavin


Nothing wrong in your thinking Gavin. That will work just fine. The method in the Service Manual just gives guidance on how to do it with fewer movements of the crankshaft. Carry on.
The following user(s) said Thank You: Gavin

Please Log in or Create an account to join the conversation.

Valve adjustment 2 weeks 5 days ago #29965

  • Bucko
  • Bucko's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 608
  • Thank you received: 146

... I have been told that I could check the clearances by positioning the lobe pointing away from the shim and doing the measurements , has anyone used this method and  will this work?

cheers
Gavin


That's the only way I've ever done it.
Hello from Canada's We(s)t coast.
The following user(s) said Thank You: Gavin

Please Log in or Create an account to join the conversation.

Valve adjustment 2 weeks 4 days ago #29970

  • scotch
  • scotch's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1722
  • Thank you received: 714
I start with which ever lobe is "Up". Record and rotate to the next lobe that's Up.  I find this easier.




This browser does not support PDFs. Please download the PDF to view it: Download PDF

1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !
Attachments:
The following user(s) said Thank You: Gavin

Please Log in or Create an account to join the conversation.
