Sub Alternator Connector Location. 3 years 6 months ago #27931

  • Bar
  • Bar's Avatar
  • Offline
  • Elite Member
  • Elite Member
  • Posts: 200
  • Thank you received: 45

Bucko wrote: Thanks Bar. Will check that out. It's the 3 pin connector that is part of the reason why I couldn't find it. Is the "small bracket with two relays " the bracket that is screwed into the frame and also holds the sub R/R?

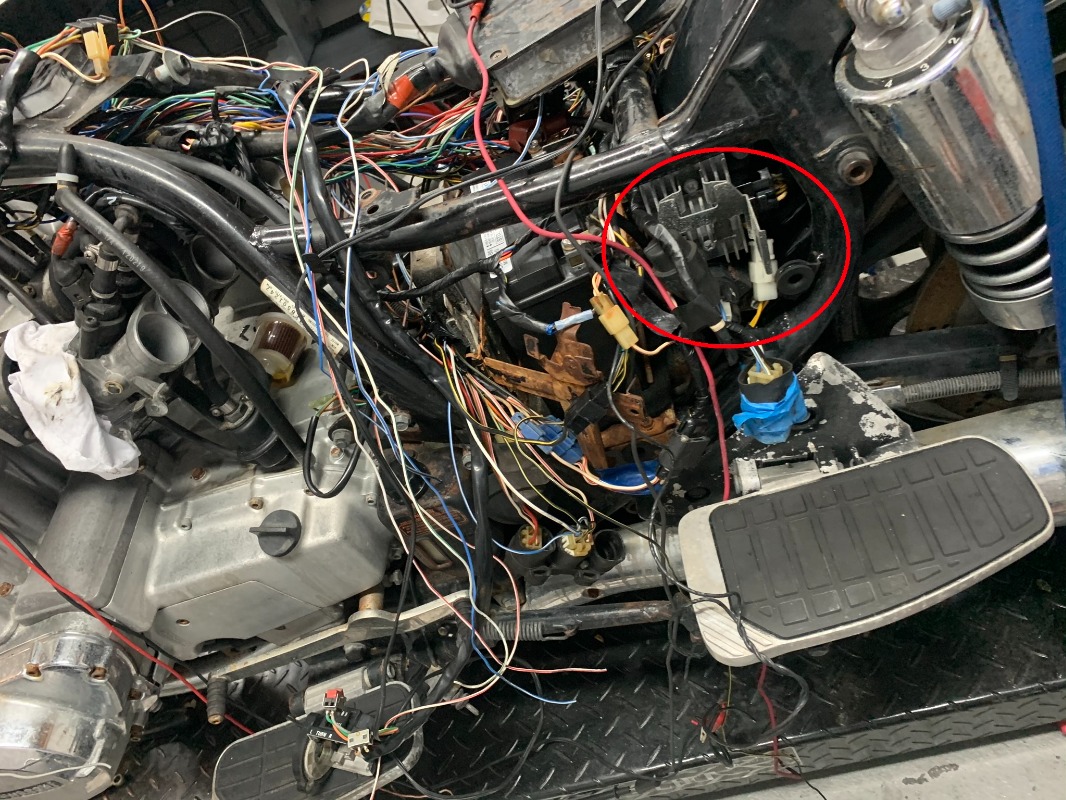

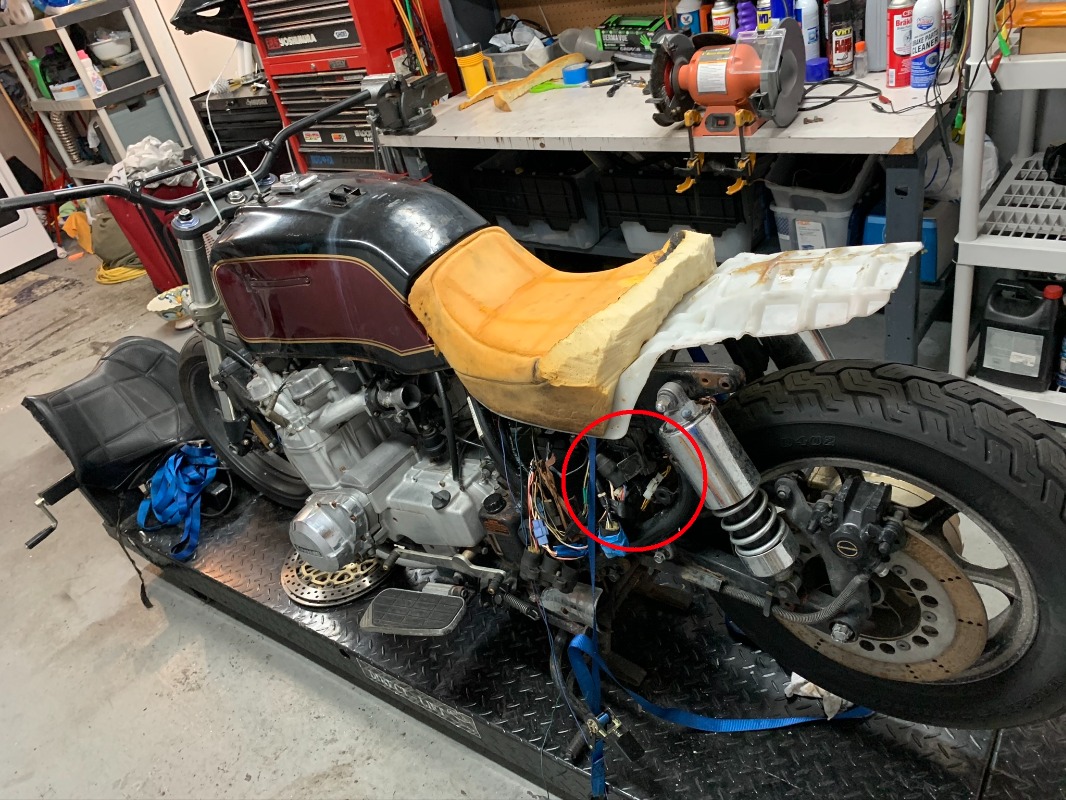

Yes, this is the one, see pictures
they are not the best but this is what I have



1984 Kawasaki Voyager
2002 Honda CBR954
Attachments:
The following user(s) said Thank You: Bucko

Please Log in or Create an account to join the conversation.

Sub Alternator Connector Location. 3 years 6 months ago #27933

  • Bucko
  • Bucko's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 667
  • Thank you received: 164
Thanks for posting the pictures.

Mystery solved. The 3 pin connector had been replaced with 3 individual bullet connectors that were completely burnt, corroded and welded together. I replaced them with a 4 pin connector as I didn't have any 3 pin in 6.3mm size. Will replace at some point in the future.

Interesting discussion: which connector type, bullet vs spade, is rated for higher current. I assume it's the spade but will need to check.

Can you post a close-up picture of the 3 pin connector so I know what to look for in a replacement?. Thanks.
Hello from Canada's We(s)t coast.

Please Log in or Create an account to join the conversation.

Last edit: by Bucko.

Sub Alternator Connector Location. 3 years 6 months ago #27938

  • Bar
  • Bar's Avatar
  • Offline
  • Elite Member
  • Elite Member
  • Posts: 200
  • Thank you received: 45
you can check this link I found, look like they have everything
www.cycleterminal.com/250-connectors.html#SC250

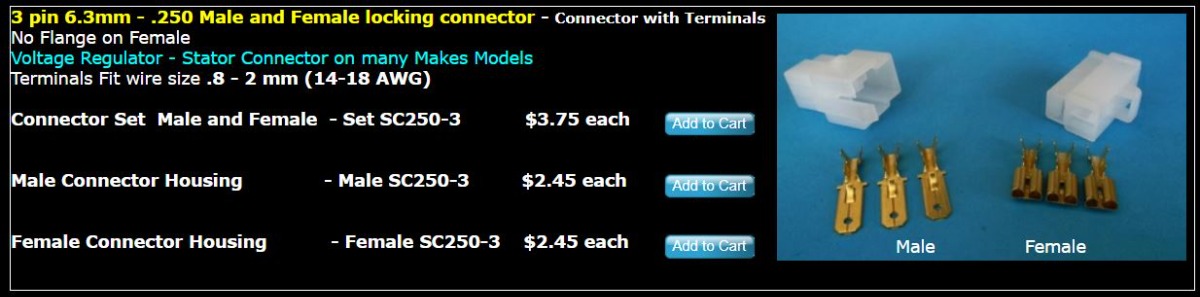

below is the 3 pin connector

1984 Kawasaki Voyager
2002 Honda CBR954
Attachments:
The following user(s) said Thank You: Bucko, zed_thirteen, stocktoy, Kawboy

Please Log in or Create an account to join the conversation.

Sub Alternator Connector Location. 3 years 6 months ago #27941

  • Bucko
  • Bucko's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 667
  • Thank you received: 164
Ahh. That clears up some confusion. Thanks.
Hello from Canada's We(s)t coast.

Please Log in or Create an account to join the conversation.

Last edit: by Bucko.

Sub Alternator Connector Location. 3 years 6 months ago #27942

  • stocktoy
  • stocktoy's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 357
  • Thank you received: 91
Man I wish I knew about this terminal site years ago
Thanks "Bar" for the link (abet a few years too late lol)

Please Log in or Create an account to join the conversation.

Sub Alternator Connector Location. 3 years 6 months ago #27945

  • Bucko
  • Bucko's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 667
  • Thank you received: 164
I ended up ordering the connectors from Eastern Beaver in Japan. I used them before and their shipping has been (for whatever reason) faster than from the US. In addition they send via 'the mail' (airmail actually) so I won't get dinged with (or very little) a brokerage fee like I do with the other courier companies..
Hello from Canada's We(s)t coast.
The following user(s) said Thank You: Kawboy

Please Log in or Create an account to join the conversation.

Last edit: by Bucko.
